Copolymer Beads

Copolymer Beads formula is designed to give the most efficient mechanical lubrication for all drilling fluids especially Horizontal Directional Drilling (HDD) or coil tubing solutions. Copolymer Beads reduce coefficient of friction, more energy to bit, lower torque and drag, increase penetration rate, extent bit and motor life, decrease wear and tear on drill pipe, and major cost savings for customers.

Reduces torque and drag Suspended fine Copolymer Beads offer excellent mechanical lubrication Maintains spherical shape past 26,000 hydrostatic psi Compatible in all drilling muds Environmentally safe

Color: semitransparent to white

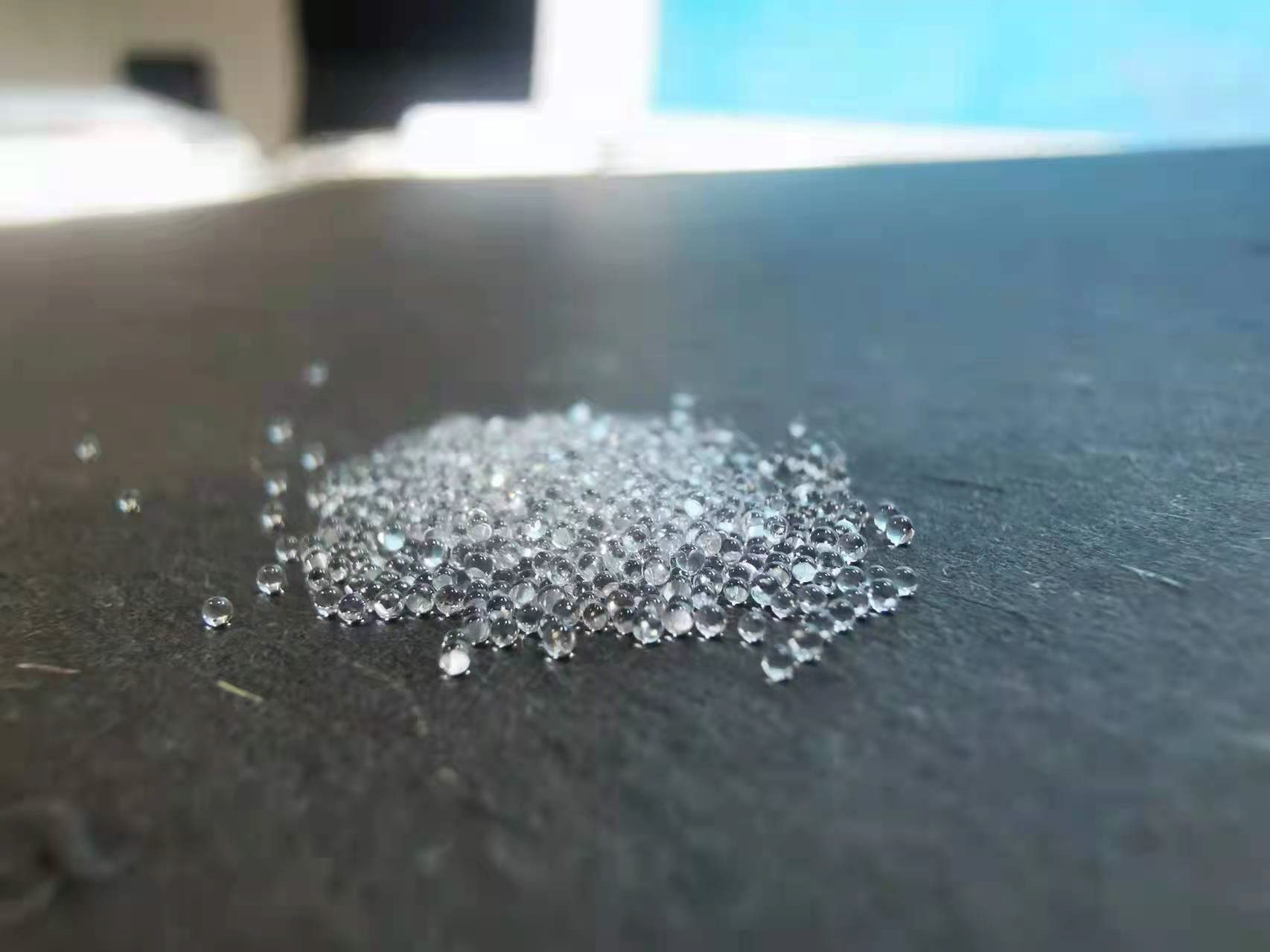

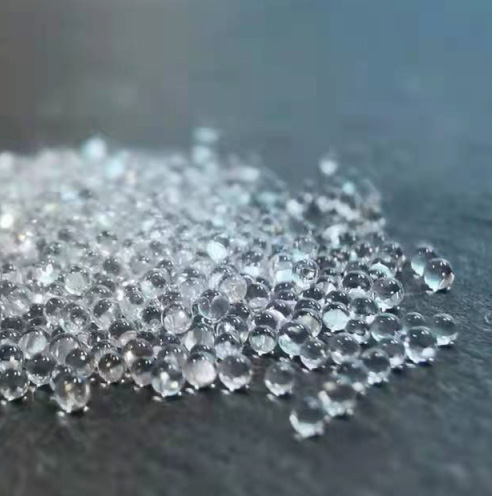

Form: solid bead spheres
Density: 1.06-1.08
Thermal Stable: 500℉
Coarse: 20-40mesh (400-841 microns)
Fine: 40-100mesh (149-354 microns)
Regular: 100-1000 microns
Compressive strength: 26,000 psi
MOHS Hardness : 4.5-5.0  on the Mohs scale
Solubility in water: Insoluble
Screen to customer requirements

Apply Copolymer Beads into mud hopper
Mix 8-12 ppb open hole volume or wire line operations for running casing.
Mix 2-8 ppb in entire system reduce torque and drag along with differential sticking.

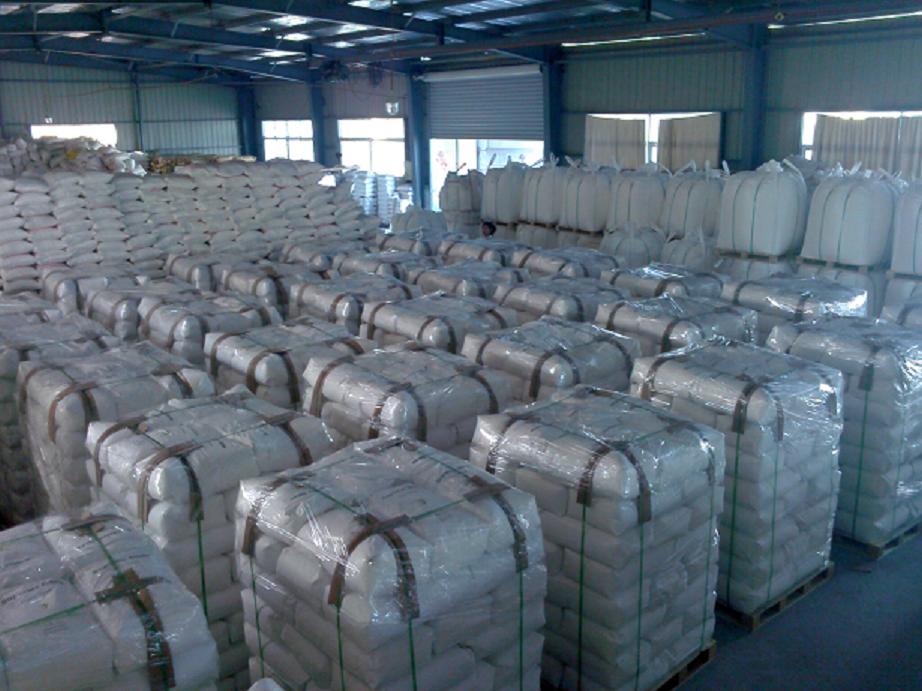

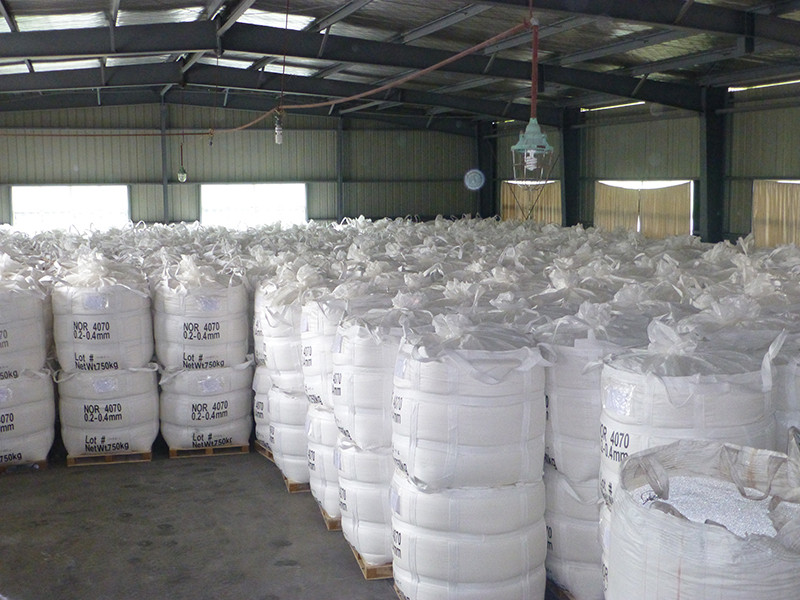

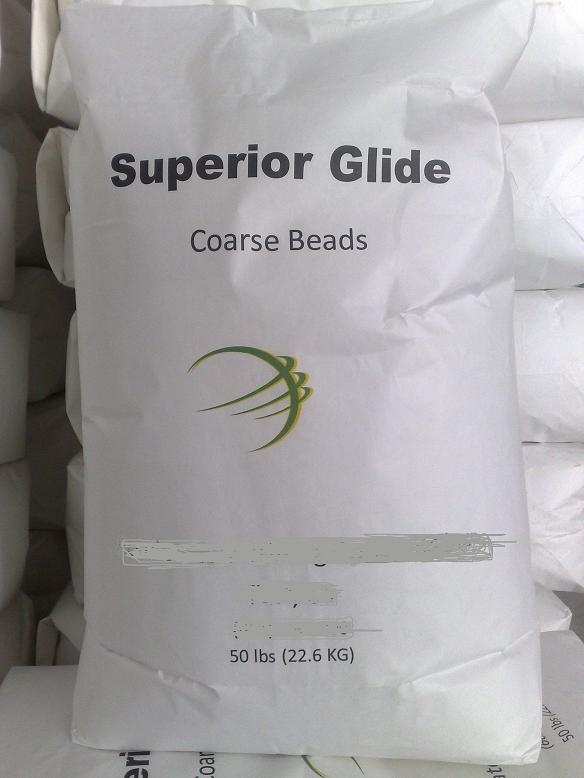

Packing: 50lb sack, or 23kg sack, 25kg sack,750kgs super sack.
